Specifications

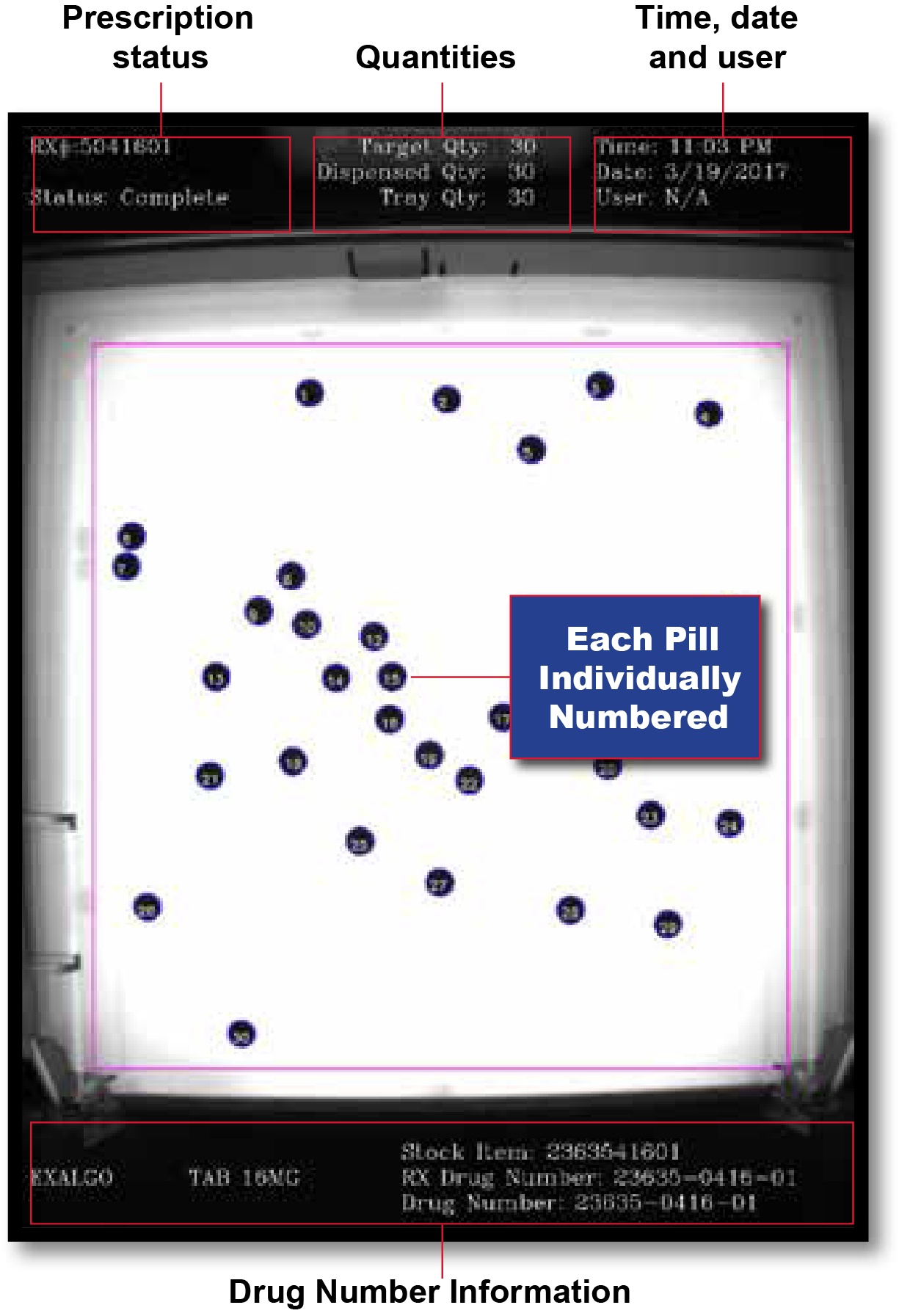

Eyecon is a unique machine vision counting system. A camera mounted above the counting platter captures photo images used to count pills five times per second.

Eyecon 9420

Eyecon continues to become the preferred choice of pharmacies that have decided to improve their prescription filling process. Eyecon 9420 builds on the revolutionary technology of the original Eyecon machine, with enhanced features that take the system to the next level.Eyecon continues to become the preferred choice of pharmacies that have decided to improve their prescription filling process. Eyecon 9420 builds on the revolutionary technology of the original Eyecon machine, with enhanced features that take the system to the next level.

Click here to view the brochure.
 Eyecon 9420 Brochure

Filling automation improves Rx accuracy, improving inventory control resulting in an average pharmacy saving thousands of dollars per year.



The Eyecon 9420 uses a unique Visual Counting System™ that is up to 76% faster and significantly more accurate than manual counting. It helps reduce tedium and stress while allowing employees to spend more time with customers. Your customers will benefit from improved customer service and Rx accuracy.



The updated Eyecon 9420 widescreen display presents more information in a single view and the touchscreen delivers enhanced brightness,
touch accuracy and supports multi-touch for pinch and zoom.

Platter Surface Area 48” sq

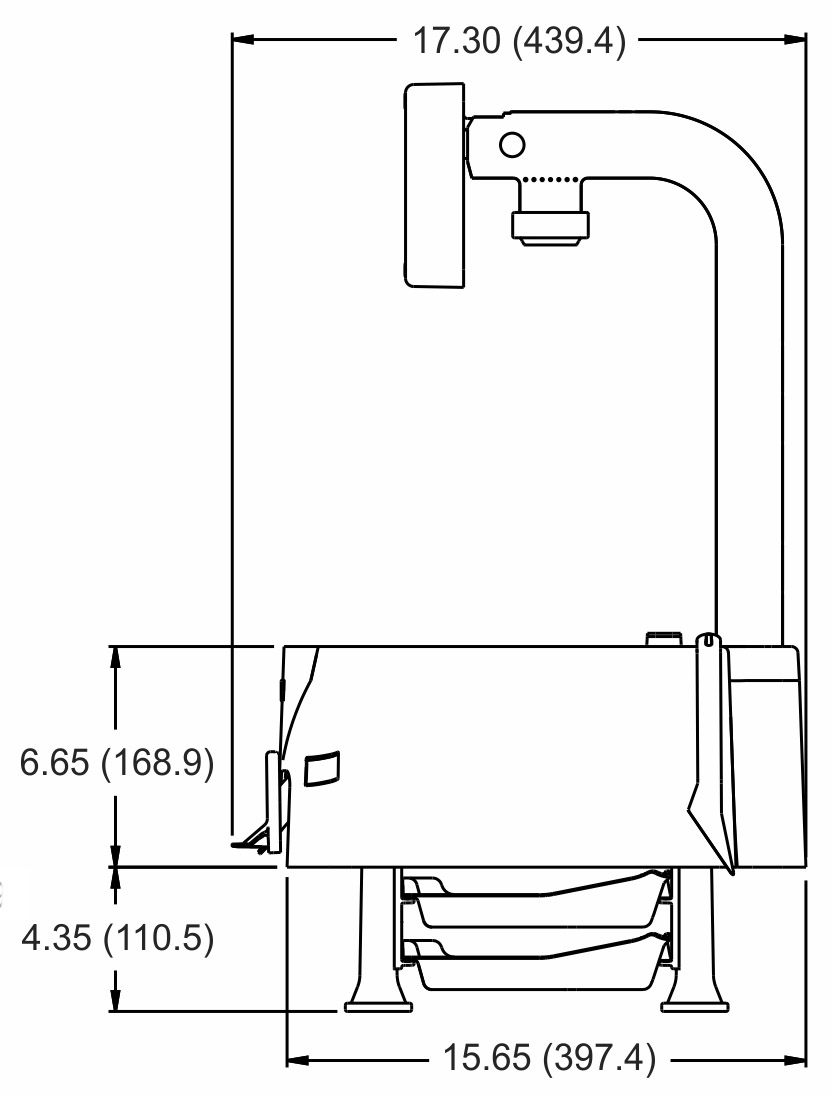

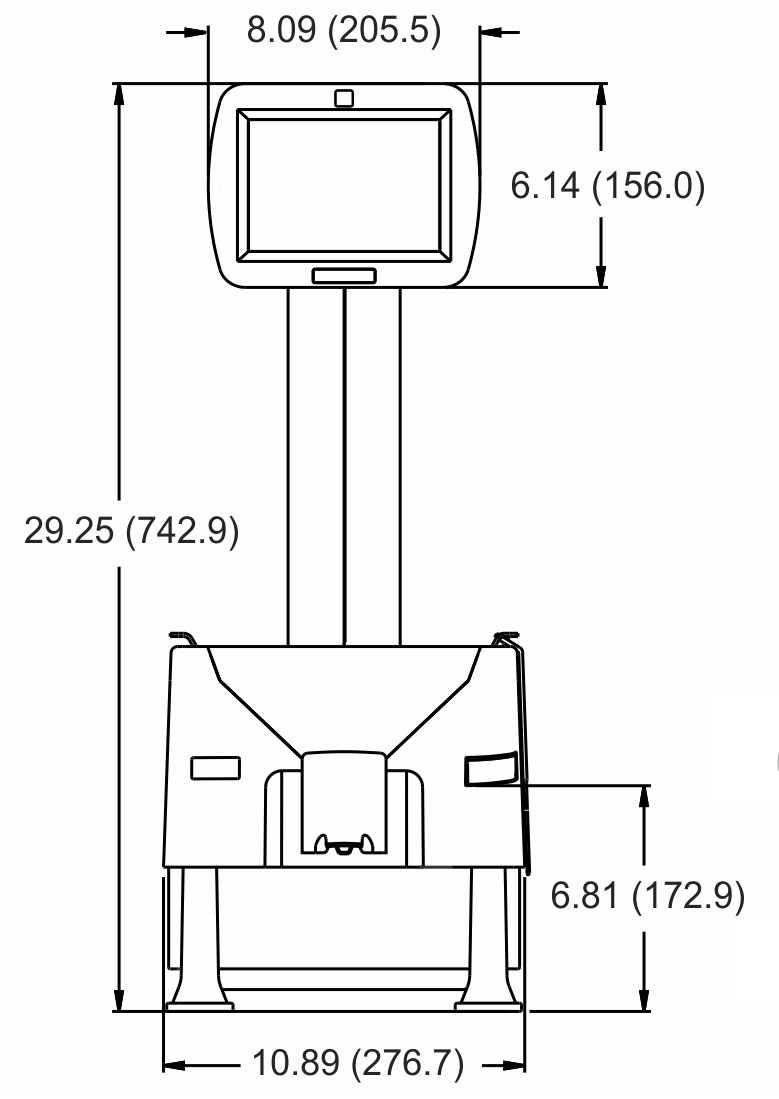

Dimensions
28” H x 11” W x 17.5” D
Weight 18 lb (30 lb ship weight)
Widescreen Display 7” 800 x 480 IPS LCD with LED backlighting
Integrated Barcode Scanner
 High performance 1D and 2D scan engine, motion tolerant and LED aiming dot
Interfaces
Over 20 pharmacy management software interfaces supported
USB Two USB 3.0 ports on the rear panel
Ethernet Gigabit LAN, RJ45 connection
Operating System Windows 10 Enterprise 2016 LTSB
OS iOS
Processor  Intel® Core™ i3-5010U dual core
Storage 128 GB SSD
RAM 8 GB
Approvals
UL/cUL approval for USA and Canada. UL file number E490213

Everyone loves it

Satisfied Eyecon Owner, 10 Jan 2018

“I have three pharmacies and an Eyecon in each location. Everyone loves it and would not want to work without it. Hands down this is the best investment in technology that I have every made.”

It's nice

Satisfied Eyecon Owner, 20 May 2019

It’s nice to be able to go home and rest knowing that everything has been filled correctly!”

Helped tremendously

Satisfied Eyecon Owner, 15 Aug 2019

Eyecon has helped tremendously in our store. I would estimate the Eyecon frees me up about half an hour a day extra to focus on my business and patients.
